     PVC Tape Glue Cabinet Straight Automatic Edge Bander

1.Product Description


1) Application:

Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.


2)Technical Parameter:
ModelET360YC
Input Voltage380 V(220V,400V,415V etc)
Edge Thickness0.4-3 mm
Edge Width12-55 mm
Panel LengthMin.120 mm
Panel WidthMin.60 mm
Panel ThicknessWith Pre-Milling 10-38 mm
No Pre-Milling10-50 mm
Feeding Speed 13 m/min
Transport Motor2.2 kw
Glue Post Motor0.37 kw
Pre-Milling Motor Power1.8 kw*2
End-trimming Motor Power0.37 kw*2
Fine-trimming Motor Power0.75 kw*2
Polishing Motor0.18 kw*2
Glue Box Heater1.5 kw
Total Power11kw
Scraping Blade Model R2*2 or R3*2
Dimension 4880/925/1560 mm
Net Weight1500 kg

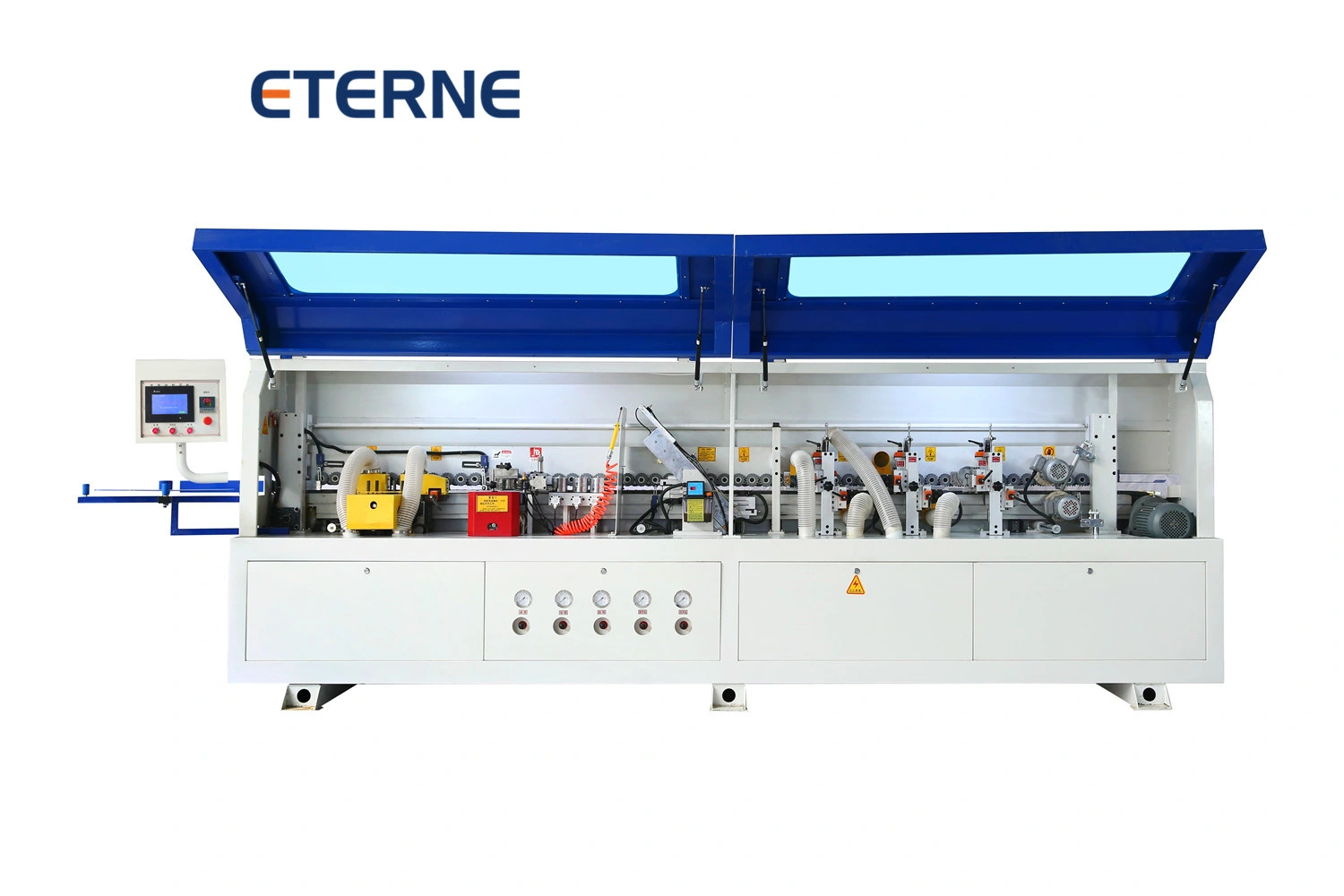

PVC Tape Glue Cabinet Straight Automatic Edge Bander

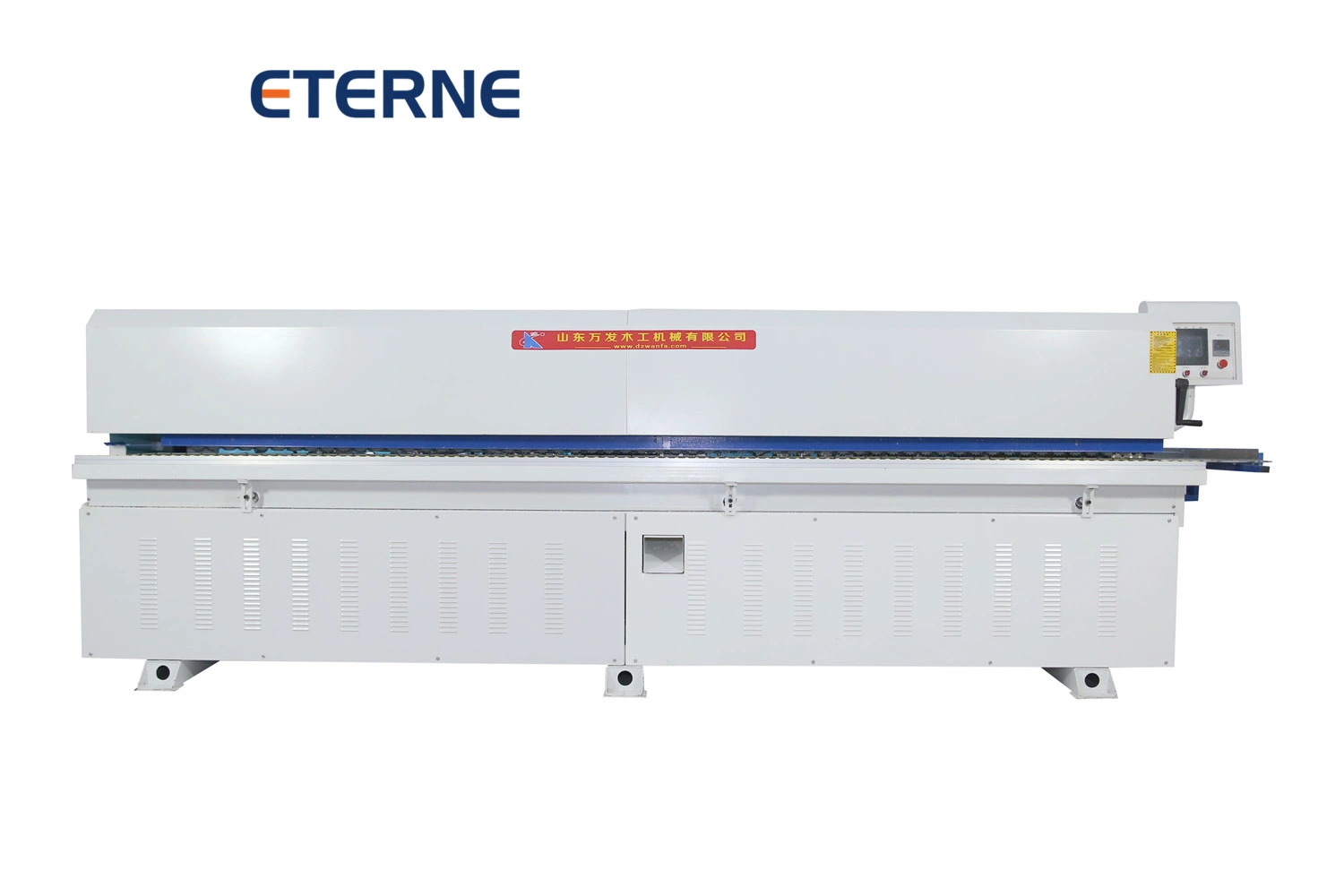

PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander

2. Working Process :
PVC Tape Glue Cabinet Straight Automatic Edge Bander


3.Advantage:


1. Adopt imported motor and high quality electrical component.
2. Product serialization and diversification is easy for the customer to choose.
3. High precision and work efficiency.
4. Automatic and precise gluing procedure as well as integrated double finish.
5. High strength frame structure, durable
6. Glue evenly, conveying stability
7. The machine is equipped with hand lubricator to reduce wear

4.Package:

We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.

PVC Tape Glue Cabinet Straight Automatic Edge Bander
PVC Tape Glue Cabinet Straight Automatic Edge Bander



5.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.

6.Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.

7. After sales services:

Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.


8. Company Introduction:

Shandong Eterne Machinery Co. Ltd. is a professional manufacturer. "ET Series" products include :
  1. Manual edge banding machine
  2. Semi-auto edge banding machine
  3. Automatic edge banding machine
  4. Multi- boring machine
  5. Sliding panel saw
  6. CNC Router
We devote ourselves to produce and provide high quality products and their spare parts.
